Wire Dipole

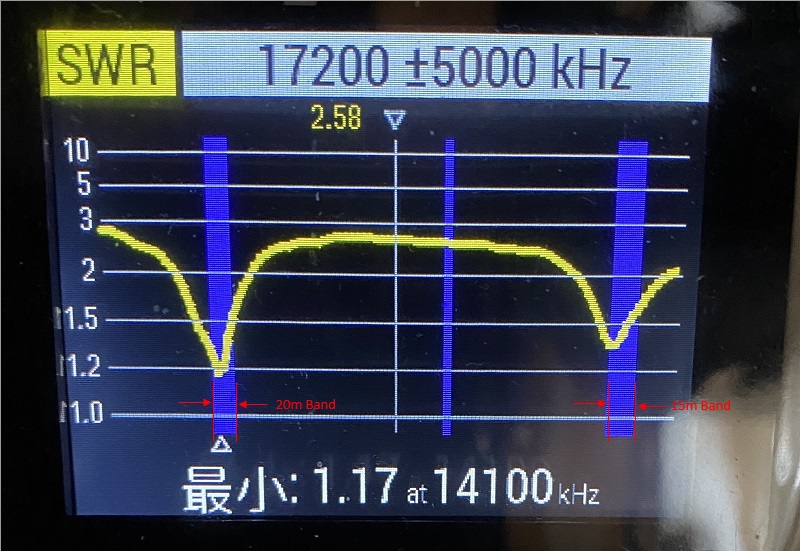

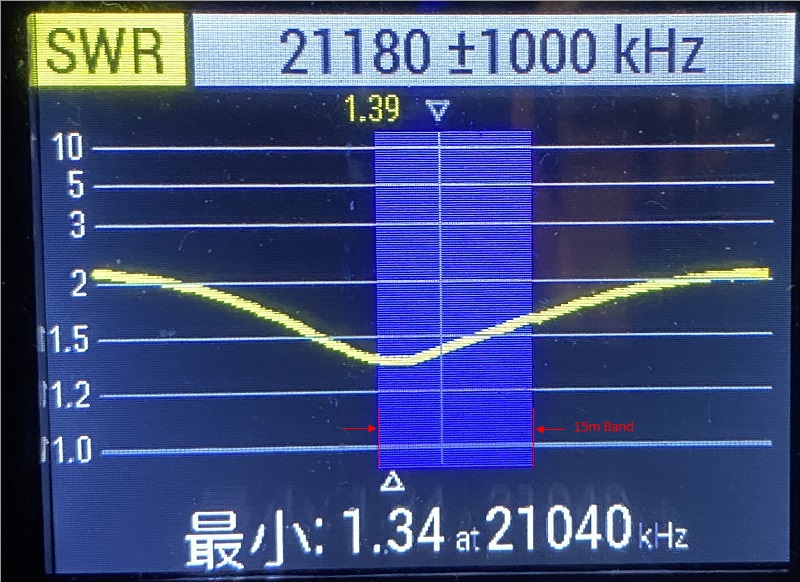

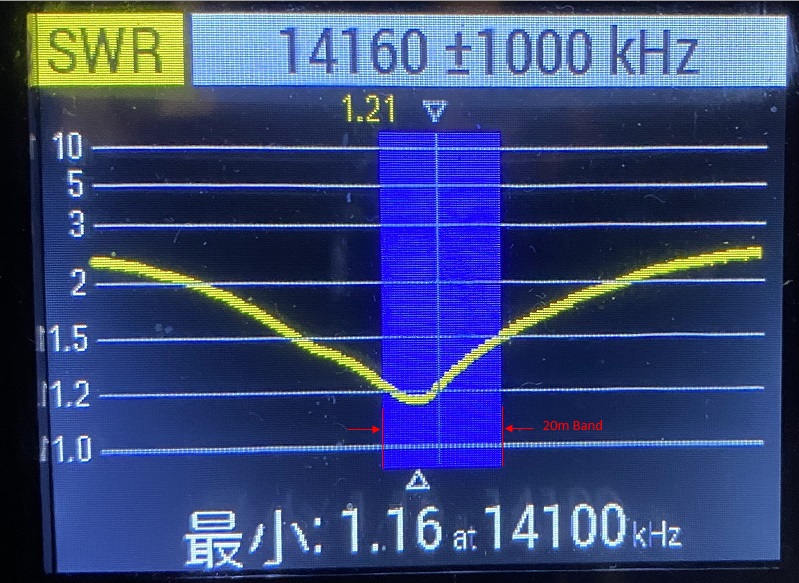

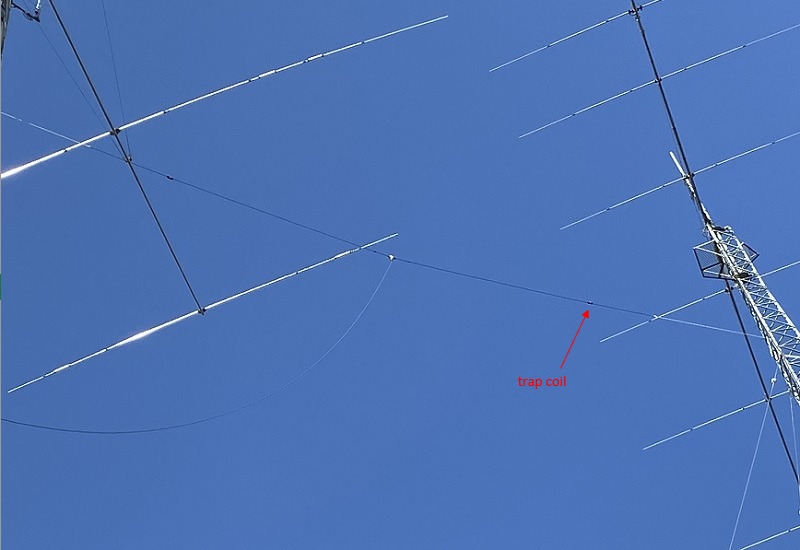

Trap coiled for 20m and 15m
April 4th 2020

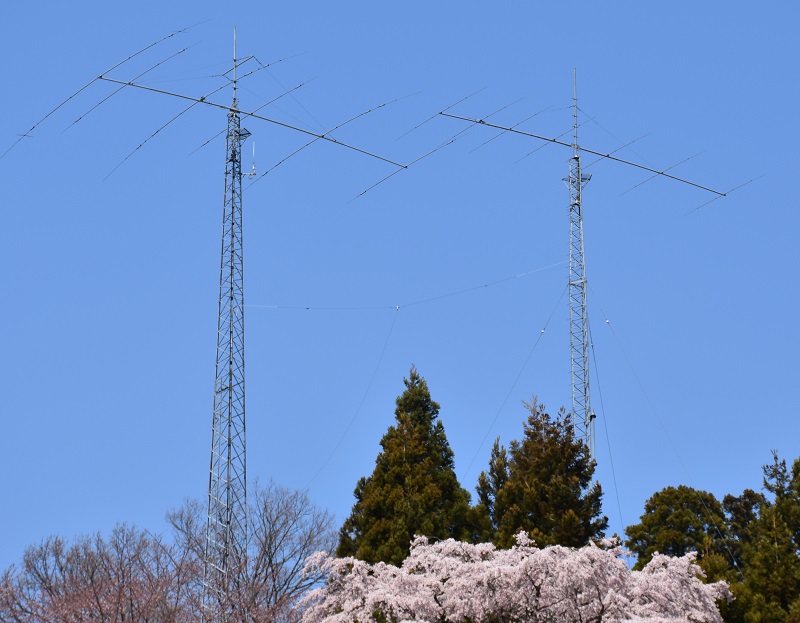

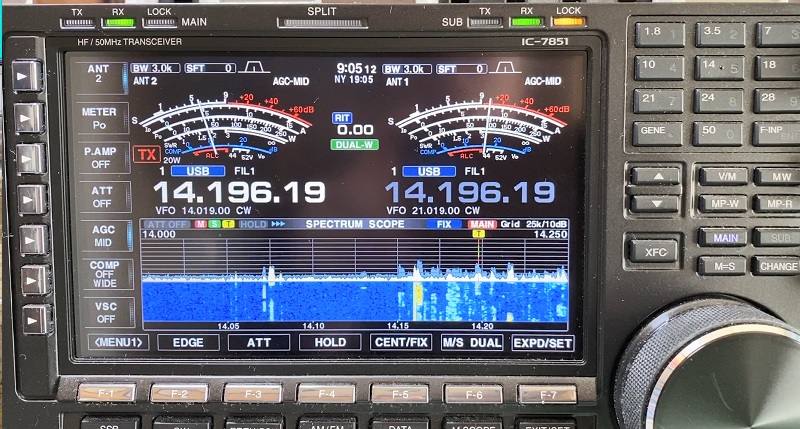

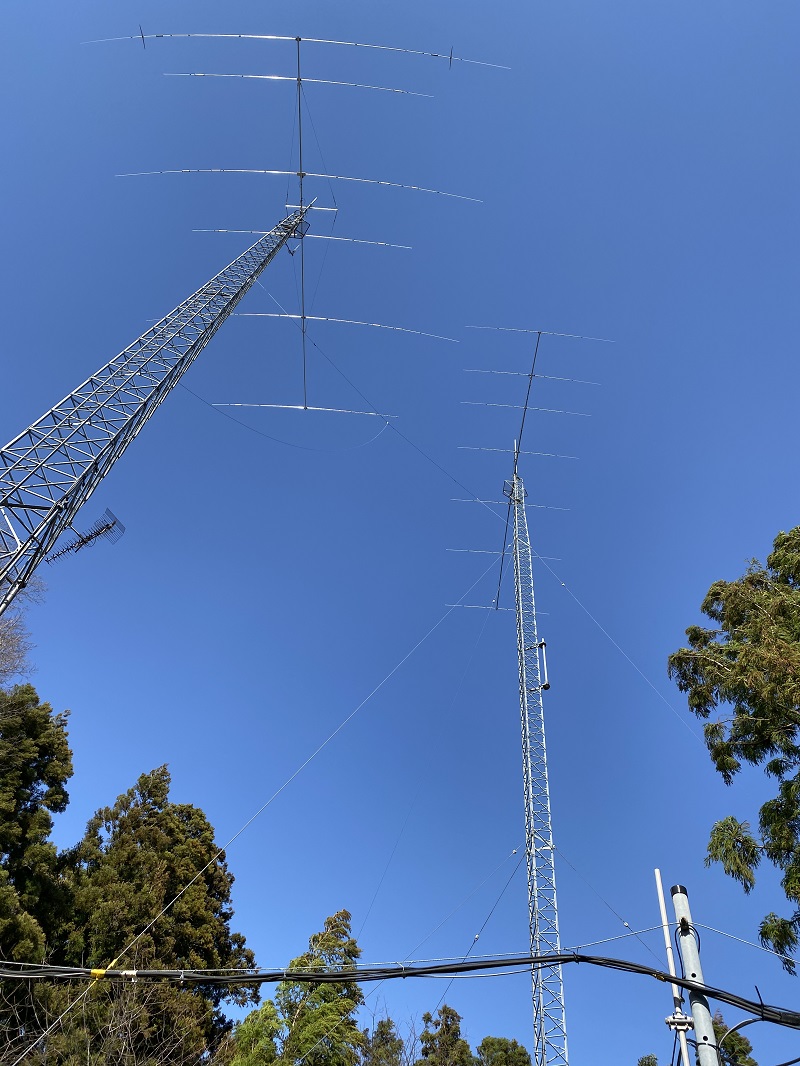

MainRecv. is ANT2(Dipole at 15m), SubRecv. is ANT1(5ele yagi at 35m)
15seconds movie(.MOV 30MB) with ARRL SSB Contest March 7th 2020

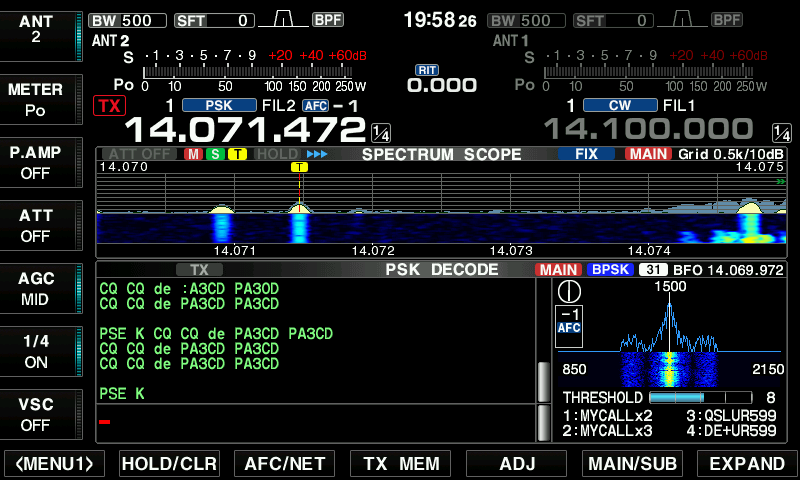

good job with psk31 from EU

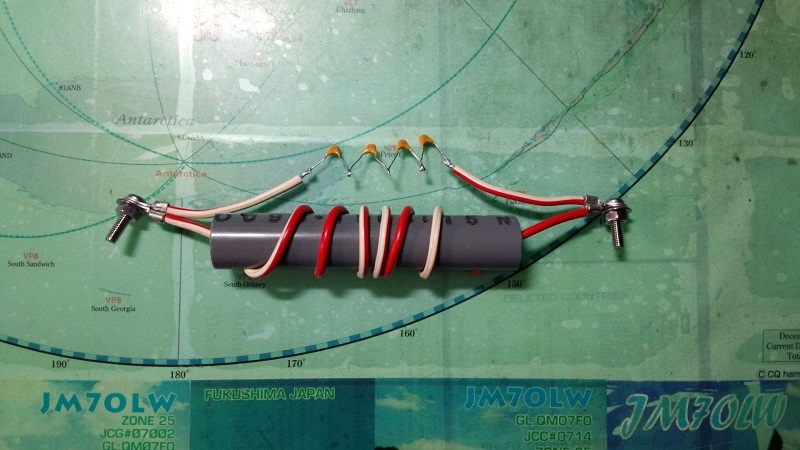

started with making trap coil for 21.000Mhz

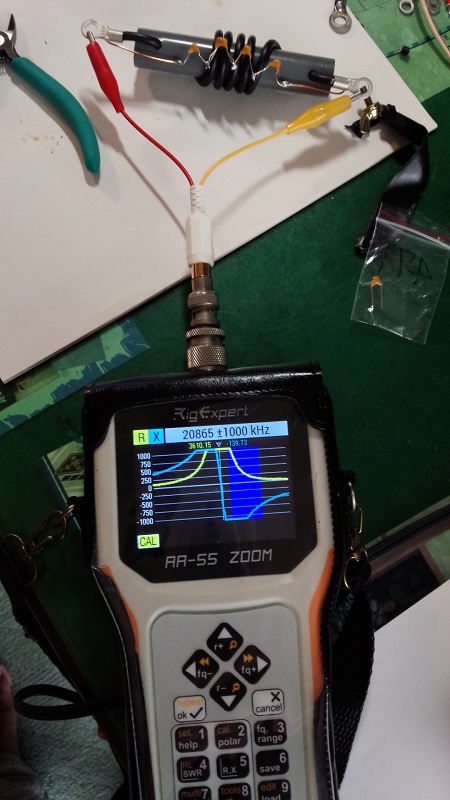

cut and try to make trap at 21.000Mhz

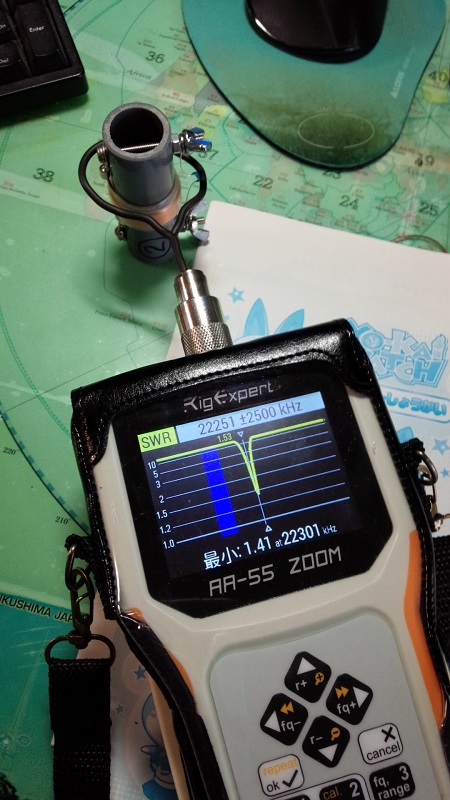

keep cut and try to dip at 21.000Mhz

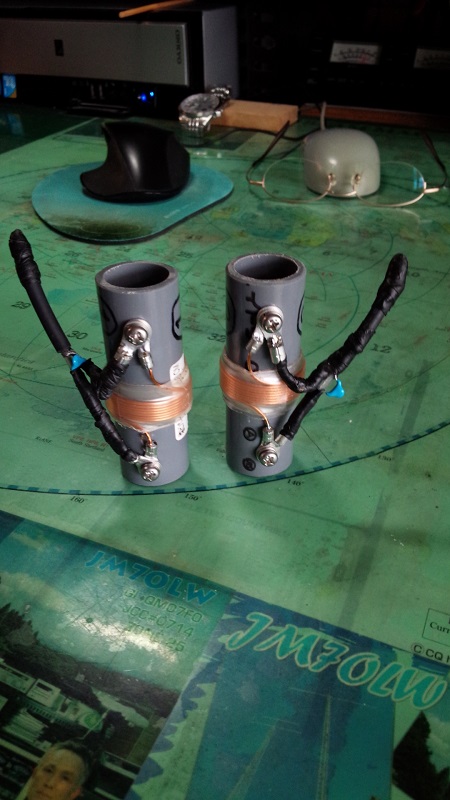

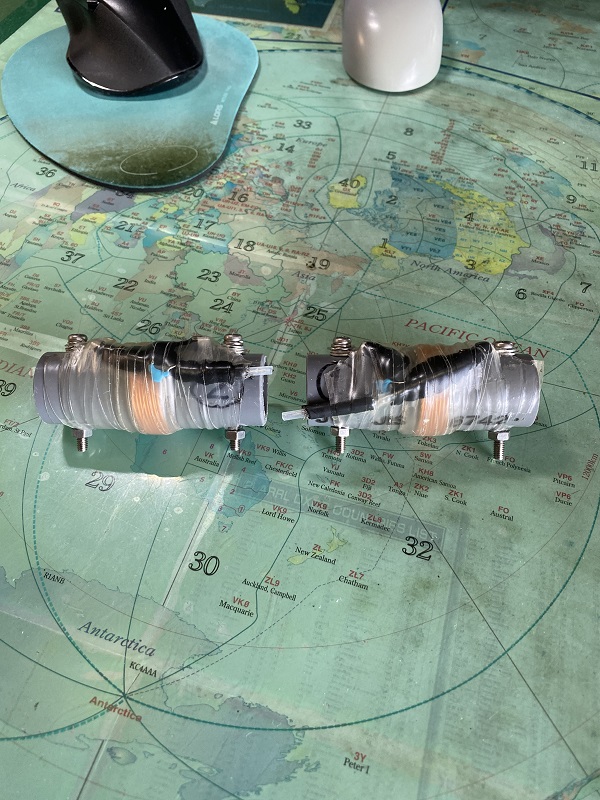

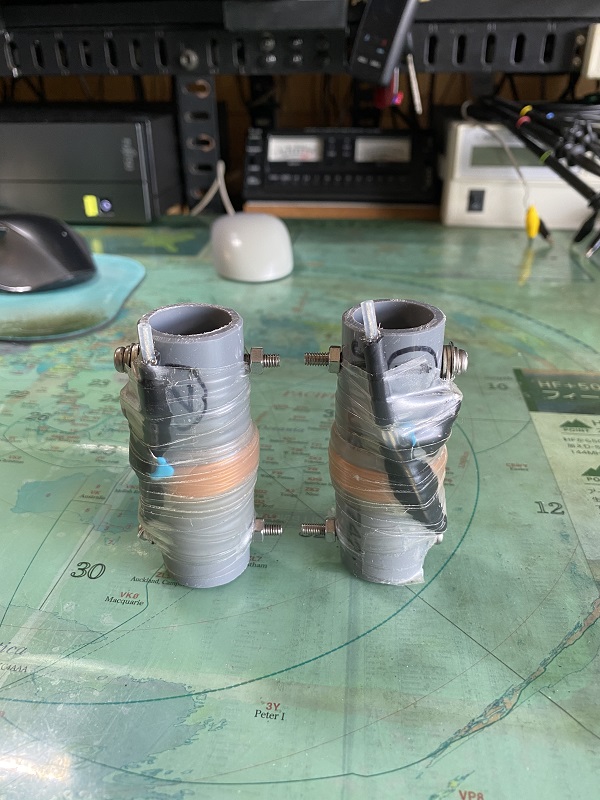

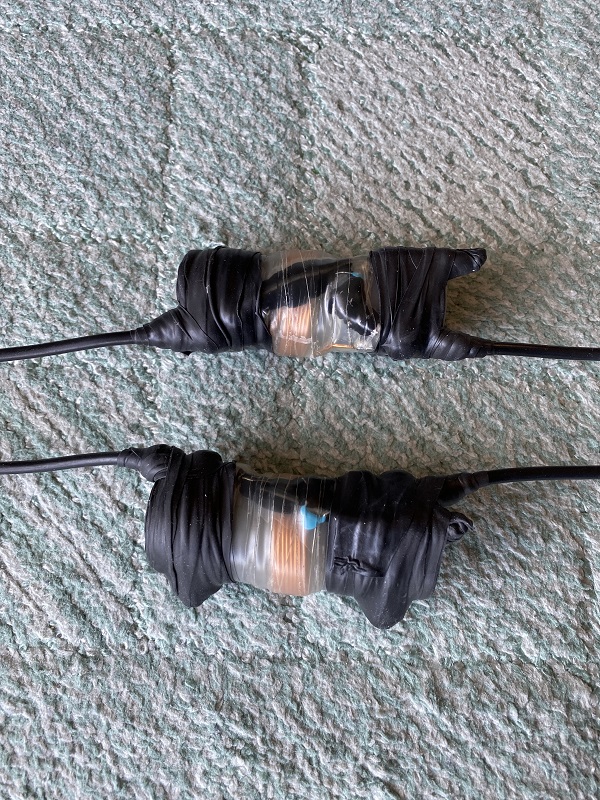

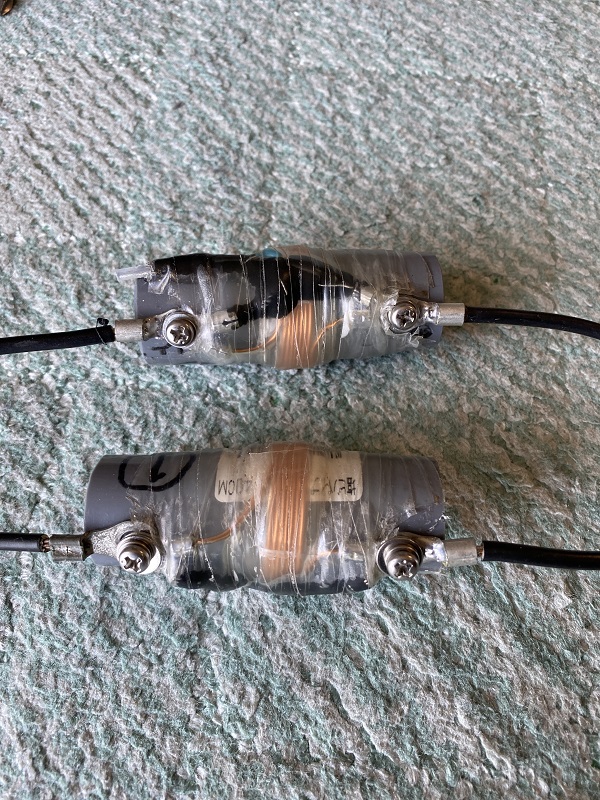

final design and style

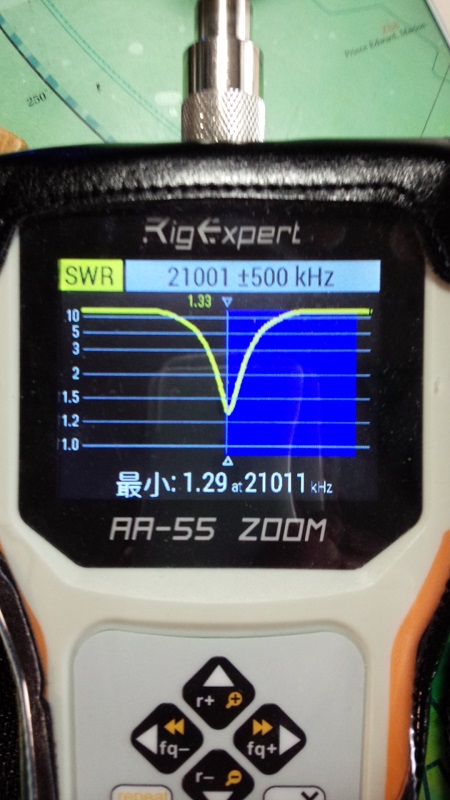

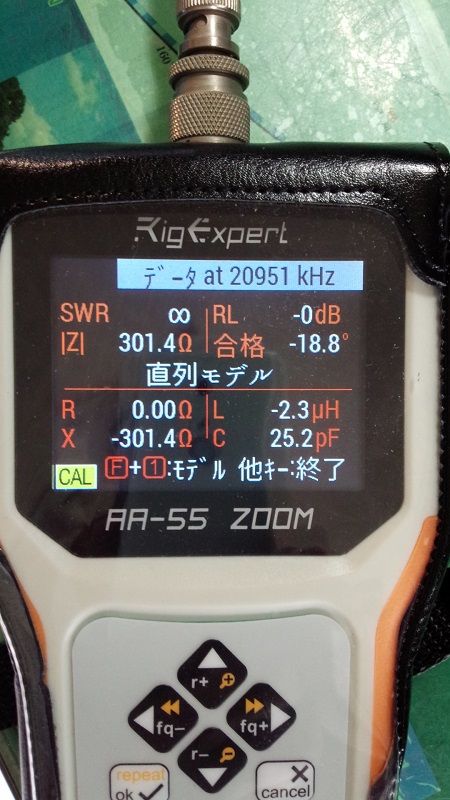

perfect dip at 21.000Mhz




8turn coil is 2.3uH
and capacitor is 25.2pF























END
